Stainless Steel Submersible Pumps

Stainless steel pumps for sewage, clean water and aggressive media – from compact submersible pumps to 250 kW industrial pumps. Casings and impellers in precision-cast stainless steel (304/316) ensure corrosion resistance and a long service life.

Stainless steel 304 and 316 – also for aggressive media
585 models from 0.37 to 250 kW in five series
Submersible, self-priming and inline centrifugal pumps from a single source
Special versions for hot media and PTFE seals

Which series is right for you?

This overview helps with a first selection. The complete model lists are shown with each series.

Series	Type	Medium	Flow rate	Head	Power	Models
WQ(D)-S	Submersible pump	sewage and waste water	10–800 m³/h	6–60 m	0.75–45 kW	71
WQ(D)-SQG	Submersible pump with cutter	fibrous, heavily soiled waste water	15–150 m³/h	7–25 m	1.1–15 kW	21
Q(D)X-S	Compact submersible pump	clean to slightly soiled	1.5–10 m³/h	12–72 m	0.37–7.5 kW	16
ZW(D)-S	Self-priming, dry-installed	dirty water	8–100 m³/h	15–60 m	1.5–15 kW	19
IRG/ISWR	Inline centrifugal pump, dry-installed	clean water, heating and cooling water, process water	3.6–1210 m³/h	3.8–150 m	0.55–250 kW	458

Stainless steel submersible pumps

Submersible pumps work directly in the medium – in the sump, pit or basin.

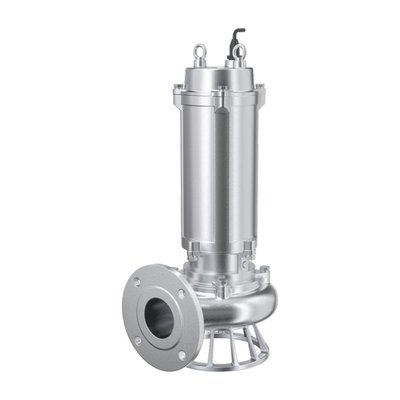

WQ(D)-S – Stainless Steel Submersible Sewage Pump

Core product – the most versatile series for sewage

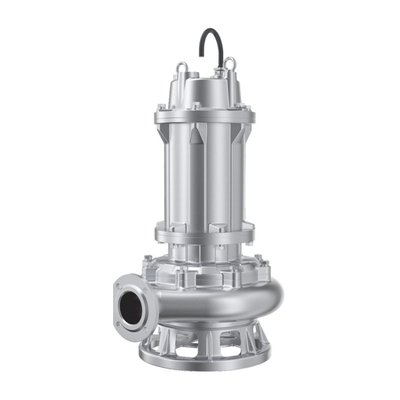

WQ-S submersible pump with 4-pole motor for high flow rates — WQ-S version with 4-pole motor

Rugged submersible pump in precision-cast stainless steel for sewage and waste water – single- and three-phase, with standard flange and double mechanical seal.

Performance range

Flow rate: 10–250 m³/h
Head: 6–60 m
Motor power: 0.75–22 kW
Nominal diameter: DN 50–200
Models: 47

Features

Casing and impeller in precision-cast stainless steel (304/316)
Double FKM mechanical seal in the oil chamber plus outer seal
Motor with class F insulation and thermal protection
Single- and three-phase versions, standard flange
Optional: corrosion-resistant cable, PTFE mechanical seal, version for media up to 100 °C

Applications

Building and site drainage
Municipal pumping stations
Industrial and commercial waste water
Livestock farming
Seawater and brine

Description and operating conditions

The WQ(D)-S series is the heart of the range. Casing and impeller are made of precision-cast stainless steel (304 or 316) and withstand even aggressive media. A double FKM mechanical seal in the oil chamber and an additional outer seal reliably protect the motor against water ingress. High-temperature winding, class F insulation and thermal protection ensure a long service life. With 47 models from 0.75 to 22 kW, the series covers almost every drainage task – from building sumps to municipal pumping stations.

Operating conditions: Medium temperature up to 40 °C (optional up to 100 °C), immersion depth max. 5 m, viscosity 7 × 10⁻⁷ to 23 × 10⁻⁶ m²/s

Model list WQ(D)-S (47 models)

Model	Flow m³/h	Head m	Power kW	DN	Speed rpm
50WQ(D)10-10-0.75S	10	10	0.75	50	2860/2900
65WQ(D)15-6-0.75S	15	6	0.75	65	2860/2900
50WQ(D)15-10-1.1S	15	10	1.1	50	2860/2900
65WQ(D)25-7-1.1S	25	7	1.1	65	2860/2900
50WQ(D)15-15-1.5S	15	15	1.5	50	2860/2900
65WQ(D)25-10-1.5S	25	10	1.5	65	2860/2900
80WQ(D)40-6-1.5S	40	6	1.5	80	2860/2900
50WQ(D)15-20-2.2S	15	20	2.2	50	2860/2900
65WQ(D)25-15-2.2S	25	15	2.2	65	2860/2900
80WQ(D)40-9-2.2S	40	9	2.2	80	2860/2900
100WQ(D)50-7-2.2S	50	7	2.2	100	2860/2900
50WQ15-25-3S	15	25	3	50	2900
65WQ25-20-3S	25	20	3	65	2900
80WQ40-15-3S	40	15	3	80	2900
100WQ50-10-3S	50	10	3	100	2900
50WQ15-32-4S	15	32	4	50	2900
65WQ25-25-4S	25	25	4	65	2900
80WQ40-18-4S	40	18	4	80	2900
100WQ50-15-4S	50	15	4	100	2900
50WQ20-32-5.5S	20	32	5.5	50	2900
65WQ30-25-5.5S	30	25	5.5	65	2900
80WQ50-18-5.5S	50	18	5.5	80	2900
100WQ80-10-5.5S	80	10	5.5	100	2900
150WQ100-7-5.5S	100	7	5.5	150	2900
50WQ20-40-7.5S	20	40	7.5	50	2900
65WQ30-32-7.5S	30	32	7.5	65	2900
80WQ45-22-7.5S	45	22	7.5	80	2900
100WQ80-15-7.5S	80	15	7.5	100	2900
150WQ100-10-7.5S	100	10	7.5	150	2900
65WQ30-50-11S	30	50	11	65	2900
80WQ45-42-11S	45	42	11	80	2900
100WQ100-20-11S	100	20	11	100	2900
150WQ180-11-11S	180	11	11	150	2900
200WQ250-7-11S	250	7	11	200	2900
65WQ30-60-15S	30	60	15	65	2900
80WQ45-52-15S	45	52	15	80	2900
100WQ100-25-15S	100	25	15	100	2900
150WQ180-15-15S	180	15	15	150	2900
200WQ250-11-15S	250	11	15	200	2900
80WQ60-50-18.5S	60	50	18.5	80	2900
100WQ80-40-18.5S	80	40	18.5	100	2900
150WQ100-36-18.5S	100	36	18.5	150	2900
200WQ180-18-18.5S	180	18	18.5	200	2900
80WQ60-55-22S	60	55	22	80	2900
100WQ80-45-22S	80	45	22	100	2900
150WQ100-40-22S	100	40	22	150	2900
200WQ200-20-22S	200	20	22	200	2900

For high flow rates: WQ-S version with 4-pole motor (1450 rpm), 100–800 m³/h, 11–45 kW, DN 100–300.

Model list WQ-S 4-pole (24 models)

Model	Flow m³/h	Head m	Power kW	DN	Speed rpm
100WQ100-20-11S	100	20	11	100	1450
150WQ180-11-11S	180	11	11	150	1450
200WQ250-7-11S	250	7	11	200	1450
100WQ100-25-15S	100	25	15	100	1450
150WQ180-15-15S	180	15	15	150	1450
200WQ250-11-15S	250	11	15	200	1450
100WQ100-30-18.5S	100	30	18.5	100	1450
150WQ180-20-18.5S	180	20	18.5	150	1450
200WQ250-15-18.5S	250	15	18.5	200	1450
100WQ100-35-22S	100	35	22	100	1450
150WQ180-25-22S	180	25	22	150	1450
200WQ250-20-22S	250	20	22	200	1450
100WQ120-45-30S	120	45	30	100	1450
150WQ180-30-30S	180	30	30	150	1450
200WQ250-22-30S	250	22	30	200	1450
250WQ600-9-30S	600	9	30	250	1450
150WQ180-37-37S	180	37	37	150	1450
200WQ350-25-37S	350	25	37	200	1450
250WQ600-12-37S	600	12	37	250	1450
300WQ800-9-37S	800	9	37	300	1450
150WQ180-45-45S	180	45	45	150	1450
200WQ400-25-45S	400	25	45	200	1450
250WQ600-15-45S	600	15	45	250	1450
300WQ800-12-45S	800	12	45	300	1450

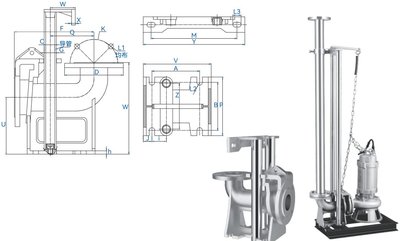

GAK – Auto-Coupling Device

Accessory for WQ(D)-S

Pull the pump out without entering the sump, service it and lower it back along the guide rail.

The GAK auto-coupling device fits pumps with standard flanges. For servicing, the pump is simply pulled out along the guide rail – nobody needs to enter the sump or sewage basin. It is then lowered again and couples automatically. For fixed pumping positions; sizes GAK-50 to GAK-200.

Sizes: GAK-50, GAK-65, GAK-80, GAK-100, GAK-150, GAK-200

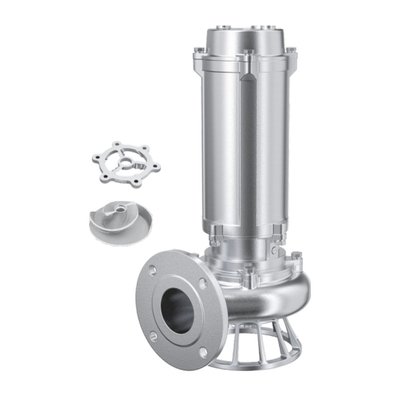

WQ(D)-SQG – Sewage Pump with Cutter

Specialist for fibrous and heavily contaminated media

Reliably shreds bags, rags and fibres – the clog-free solution for difficult waste water.

Performance range

Flow rate: 15–150 m³/h
Head: 7–25 m
Motor power: 1.1–15 kW
Nominal diameter: DN 50–150
Models: 21

Features

Semi-open impeller with rotary cutter
Impeller and cutter disc in hardened 3Cr13
Clog-free and low-maintenance
Single- and three-phase versions
According to the manufacturer up to 50 % lower power consumption

Applications

Livestock and agriculture
Hotel and restaurant waste water
Sewage pits and septic tanks
Biogas plants
Municipal waste water treatment

Description and operating conditions

Where conventional pumps clog, the WQ(D)-SQG keeps working. Its semi-open impeller with rotary cutter shreds plastic bags, rags and long fibres before they can block the pump or pipework. Impeller and cutter disc in heat-treated 3Cr13 are wear-resistant and rust-free. The pump was developed specifically for waste water containing sediment from agriculture, hospitality and municipalities, and its low-maintenance operation reduces life-cycle costs.

Operating conditions: Medium temperature up to 40 °C, immersion depth max. 5 m

Model list WQ(D)-SQG (21 models)

Model	Flow m³/h	Head m	Power kW	DN	Speed rpm
50WQ(D)15-7-1.1SQG	15	7	1.1	50	2860/2900
50WQ(D)15-10-1.5SQG	15	10	1.5	50	2860/2900
65WQ(D)25-7-1.5SQG	25	7	1.5	65	2860/2900
50WQ(D)15-18-2.2SQG	15	18	2.2	50	2860/2900
65WQ(D)25-15-2.2SQG	25	15	2.2	65	2860/2900
80WQ(D)30-10-2.2SQG	30	10	2.2	80	2860/2900
50WQ15-20-3SQG	15	20	3	50	2900
65WQ30-17-3SQG	30	17	3	65	2900
80WQ35-14-3SQG	35	14	3	80	2900
50WQ15-25-4SQG	15	25	4	50	2900
65WQ45-17-4SQG	45	17	4	65	2900
80WQ60-13-4SQG	60	13	4	80	2900
100WQ80-10-4SQG	80	10	4	100	2900
80WQ65-17-5.5SQG	65	17	5.5	80	2900
100WQ85-15-5.5SQG	85	15	5.5	100	2900
80WQ85-19-7.5SQG	85	19	7.5	150	2900
100WQ100-15-7.5SQG	100	15	7.5	100	2900
100WQ100-20-11SQG	100	20	11	100	2900
150WQ150-11-11SQG	150	11	11	150	2900
100WQ100-25-15SQG	100	25	15	100	2900
150WQ150-15-15SQG	150	15	15	150	2900

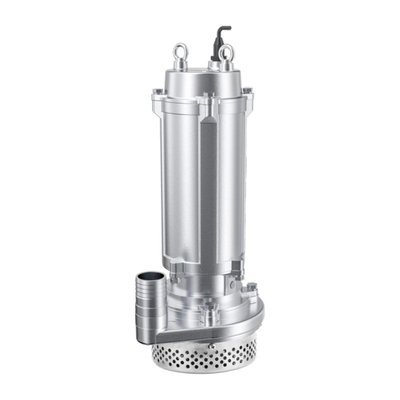

Q(D)X-S – Stainless Steel Compact Submersible Pump

Entry level – compact, lightweight and also for 230 V

Compact all-stainless submersible pump with high head – ideal for water supply, irrigation and small drainage tasks.

Performance range

Flow rate: 1.5–10 m³/h
Head: 12–72 m
Motor power: 0.37–7.5 kW
Nominal diameter: DN 25–50
Models: 16

Features

Entirely precision-cast stainless steel
Closed stainless impeller for heads up to 72 m
Double FKM mechanical seal, class F insulation
Single-phase models up to 2.2 kW
For clean to slightly contaminated media (solids ≤ 0.2 mm)

Applications

Water supply and pressure boosting
Garden and field irrigation
Emptying tanks and basins
Slightly aggressive liquids

Description and operating conditions

The Q(D)X-S is made entirely of precision-cast stainless steel: corrosion-resistant, compact and durable. A closed, stamped and welded impeller generates heads of up to 72 m. A double FKM mechanical seal and radial O-ring seal protect the motor even in aggressive media. The single-phase models up to 2.2 kW operate without a three-phase supply – ideal for trades, agriculture and building services.

Operating conditions: Medium temperature up to 40 °C, immersion depth max. 5 m, solids ≤ 0.2 mm and ≤ 0.1 %

Model list Q(D)X-S (16 models)

Model	Flow m³/h	Head m	Power kW	DN	Speed rpm
Q(D)X1.5-17-0.37S	1.5	17	0.37	25	2860/2900
Q(D)X3-18-0.55S	3	18	0.55	25	2860/2900
Q(D)X6-14-0.55S	6	14	0.55	40	2860/2900
Q(D)X10-12-0.55S	10	12	0.55	50	2860/2900
Q(D)X3-26-0.75S	3	26	0.75	25	2860/2900
Q(D)X6-18-0.75S	6	18	0.75	40	2860/2900
Q(D)X10-16-0.75S	10	16	0.75	50	2860/2900
Q(D)X6-24-1.1S	6	24	1.1	40	2860/2900
Q(D)X10-18-1.1S	10	18	1.1	50	2860/2900
Q(D)X6-32-1.5S	6	32	1.5	50	2860/2900
Q(D)X10-24-1.5S	10	24	1.5	50	2860/2900
Q(D)X10-34-2.2S	10	34	2.2	50	2860/2900
QX10-40-3S	10	40	3	50	2900
QX10-52-4S	10	52	4	50	2900
QX10-62-5.5S	10	62	5.5	50	2900
QX10-72-7.5S	10	72	7.5	50	2900

Dry-installed stainless steel pumps

These pumps stand outside the medium and remain accessible at all times.

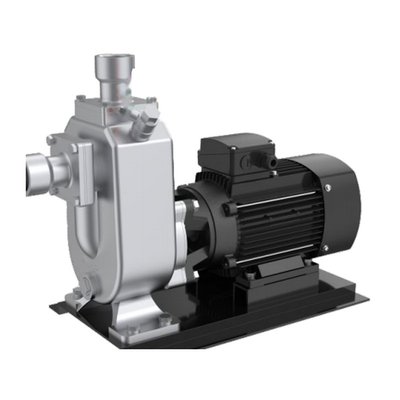

ZW(D)-S – Self-Priming Sewage Pump

Dry-installed – always accessible

Self-priming sewage pump in precision-cast stainless steel: installed outside the medium, compact and easy to service.

Performance range

Flow rate: 8–100 m³/h
Head: 15–60 m
Motor power: 1.5–15 kW
Nominal diameter: DN 40–100
Models: 19

Features

Self-priming, installed outside the medium
Pump casing in precision-cast stainless steel
Compact monobloc design, small footprint
Series or parallel operation possible
Single- and three-phase versions

Applications

Pumping stations and dry-installed sumps
Industry and commerce
Mobile and changing locations
Transfer and emptying

Description and operating conditions

The ZW(D)-S is installed outside the pumped medium and primes itself. It therefore remains accessible at all times – an advantage for pumping stations and changing locations. The compact monobloc design of motor, mechanical seal and pump requires little floor space and runs smoothly. Depending on the required head or flow, several pumps can be operated in series or in parallel.

Operating conditions: Medium must not significantly corrode 304/316

Model list ZW(D)-S (19 models)

Model	Flow m³/h	Head m	Power kW	DN	Speed rpm
40ZW(D)8-18-1.5S	8	18	1.5	40	2860/2900
50ZW(D)15-15-1.5S	15	15	1.5	50	2860/2900
40ZW(D)8-20-2.2S	8	20	2.2	40	2860/2900
50ZW(D)18-18-2.2S	18	18	2.2	50	2860/2900
65ZW(D)25-15-2.2S	25	15	2.2	65	2860/2900
50ZW18-25-3S	18	25	3	50	2900
65ZW25-20-3S	25	20	3	65	2900
50ZW18-30-4S	18	30	4	50	2900
65ZW25-25-4S	25	25	4	65	2900
65ZW30-25-5.5S	30	25	5.5	65	2900
80ZW50-18-5.5S	50	18	5.5	80	2900
65ZW30-32-7.5S	30	32	7.5	65	2900
80ZW45-22-7.5S	45	22	7.5	80	2900
65ZW30-50-11S	30	50	11	65	2900
80ZW45-42-11S	45	42	11	80	2900
100ZW100-20-11S	100	20	11	100	2900
65ZW30-60-15S	30	60	15	65	2900
80ZW45-52-15S	45	52	15	80	2900
100ZW100-25-15S	100	25	15	100	2900

IRG/ISWR – Stainless Steel Inline Centrifugal Pump

Clean water, building services and industry – widest performance range

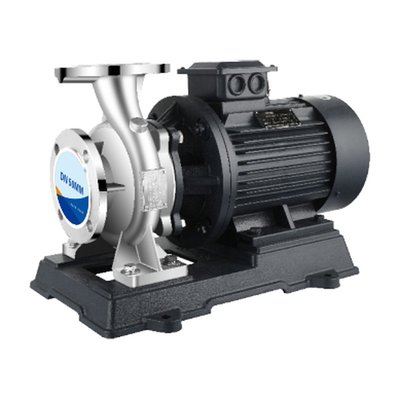

ISWR horizontal inline centrifugal pump on base frame

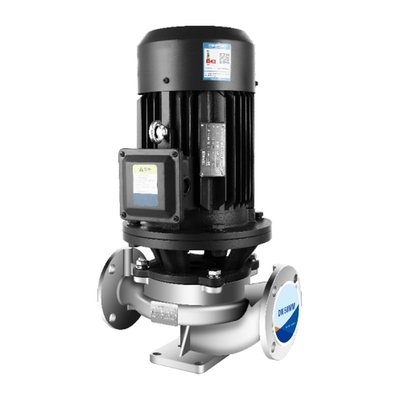

IRG vertical inline centrifugal pump — Vertical design IRG

Single-stage inline centrifugal pump in horizontal and vertical design – from 0.55 to 250 kW for water supply, heating, cooling and process water.

Performance range

Flow rate: 3.6–1210 m³/h
Head: 3.8–150 m
Motor power: 0.55–250 kW
Nominal diameter: DN 25–350
Models: 458

Features

Horizontal and vertical design
Directly coupled motor – around 30 % less floor space
Mechanical seal with cemented-carbide rings, leak-free
Trimmed impellers A/B/C for the exact duty point
With IP54 motor also suitable for outdoor use

Applications

Water supply and pressure boosting in buildings
Heating, ventilation and cooling circuits
Industrial and process water
Irrigation and fire-fighting pressure boosting
Marine applications

Description and operating conditions

The IRG/ISWR is the series with the widest performance range: 458 models at 3000 and 1500 rpm. Motor and pump are directly coupled, saving around 30 % floor space compared with similar centrifugal pumps. The balanced impeller ensures smooth, low-vibration operation; the mechanical seal with cemented-carbide rings is leak-free. Trimmed impellers (variants A, B, C) allow precise matching to the duty point. With an IP54 motor, outdoor installation is also possible.

Operating conditions: Medium temperature up to 85 °C, system pressure up to 1.6 MPa, suction pressure max. 0.3 MPa, solids ≤ 0.1 % and ≤ 0.2 mm, ambient up to 40 °C

Model list IRG/ISWR at 3000 rpm (220 models)

Model	Flow m³/h	Head m	Power kW	DN	Speed rpm
25-125	4	20	0.75	25	3000
25-125A	3.6	16	0.75	25	3000
25-160	4	32	1.5	25	3000
25-160A	3.7	28	1.1	25	3000
32-125	5	20	0.75	32	3000
32-125A	4.5	16	0.75	32	3000
32-160	4.5	32	1.5	32	3000
32-160A	4	28	1.1	32	3000
32-200	4.5	50	3	32	3000
32-200A	4	44	2.2	32	3000
40-100	6.3	12.5	0.75	40	3000
40-125	6.3	20	1.1	40	3000
40-125A	5.6	16	0.75	40	3000
40-160	6.3	32	2.2	40	3000
40-160A	5.9	28	1.5	40	3000
40-160B	5.5	24	1.1	40	3000
40-200	6.3	50	4	40	3000
40-200A	5.9	44	3	40	3000
40-200B	3.7	38	2.2	40	3000
40-250	6.3	80	7.5	40	3000
40-250A	5.9	70	5.5	40	3000
40-250B	5.5	60	4	40	3000
40-100(I)	12.5	12.5	1.1	40	3000
40-100(I)A	11	10	0.75	40	3000
40-125(I)	12.5	20	1.5	40	3000
40-125(I)A	11	16	1.1	40	3000
40-160(I)	12.5	32	3	40	3000
40-160(I)A	11.7	28	2.2	40	3000
40-160(I)B	10.4	22	1.5	40	3000
40-200(I)	12.5	50	5.5	40	3000
40-200(I)A	11.7	44	4	40	3000
40-200(I)B	10.6	36	3	40	3000
40-250(I)	12.5	80	11	40	3000
40-250(I)A	11.6	70	7.5	40	3000
40-250(I)B	10.8	60	7.5	40	3000
40-250(I)C	10	52	5.5	40	3000
50-100	12.5	12.5	1.1	50	3000
50-100A	11	10	0.75	50	3000
50-125	12.5	20	1.5	50	3000
50-125A	11	16	1.1	50	3000
50-160	12.5	32	3	50	3000
50-160A	11.7	28	2.2	50	3000
50-160B	10.4	22	1.5	50	3000
50-200	12.5	50	5.5	50	3000
50-200A	11.7	44	4	50	3000
50-200B	10.6	36	3	50	3000
50-250	12.5	80	11	50	3000
50-250A	16	70	7.5	50	3000
50-250B	10.8	60	7.5	50	3000
50-250C	10	52	5.5	50	3000
50-100(I)	25	12.5	1.5	50	3000
50-100(I)A	22.3	10	1.1	50	3000
50-125(I)	25	20	3	50	3000
50-125(I)A	22.3	16	2.2	50	3000
50-160(I)	25	32	4	50	3000
50-160(I)A	23.4	28	4	50	3000
50-160(I)B	21.6	24	3	50	3000
50-200(I)	25	50	7.5	50	3000
50-200(I)A	23.5	44	7.5	50	3000
50-200(I)B	21.8	38	5.5	50	3000
50-250(I)	25	80	15	50	3000
50-250(I)A	23.4	70	11	50	3000
50-250(I)B	21.6	60	11	50	3000
50-315(I)	25	125	30	50	3000
50-315(I)A	23.7	113	22	50	3000
50-315(I)B	22.5	101	18.5	50	3000
50-315(I)C	20.6	85	15	50	3000
65-100	25	12.5	1.5	65	3000
65-100A	22.3	10	1.1	65	3000
65-125	25	20	3	65	3000
65-125A	22.3	16	2.2	65	3000
65-160	25	32	4	65	3000
65-160A	23.4	28	4	65	3000
65-160B	21.6	24	3	65	3000
65-200	25	50	7.5	65	3000
65-200A	23.5	44	7.5	65	3000
65-200B	21.8	38	5.5	65	3000
65-250	25	80	15	65	3000
65-250A	23.4	70	11	65	3000
65-250B	21.6	60	11	65	3000
65-315	25	125	30	65	3000
65-315A	23.7	113	22	65	3000
65-315B	22.5	101	18.5	65	3000
65-315C	20.6	85	15	65	3000
65-100(I)	50	12.5	3	65	3000
65-100(I)A	44.7	10	2.2	65	3000
65-125(I)	50	20	5.5	65	3000
65-125(I)A	45	16	4	65	3000
65-160(I)	50	32	7.5	65	3000
65-160(I)A	46.7	28	7.5	65	3000
65-160(I)B	43.4	24	5.5	65	3000
65-200(I)	50	50	15	65	3000
65-200(I)A	47	44	11	65	3000
65-200(I)B	43.3	38	7.5	65	3000
65-250(I)	50	80	22	65	3000
65-250(I)A	46.7	70	18.5	65	3000
65-250(I)B	43.3	60	15	65	3000
65-315(I)	50	125	37	65	3000
65-315(I)A	46.5	110	30	65	3000
65-315(I)B	44.5	100	30	65	3000
65-315(I)C	41	85	22	65	3000
80-100	50	12.5	3	80	3000
80-100A	44.7	10	2.2	80	3000
80-125	50	20	5.5	80	3000
80-125A	45	16	4	80	3000
80-160	50	32	7.5	80	3000
80-160A	46.7	28	7.5	80	3000
80-160B	43.4	24	5.5	80	3000
80-200	50	50	15	80	3000
80-200A	47	44	11	80	3000
80-200B	43.3	38	7.5	80	3000
80-250	50	80	22	80	3000
80-250A	46.7	70	18.5	80	3000
80-250B	43.3	60	15	80	3000
80-315	50	125	37	80	3000
80-315A	46.5	110	30	80	3000
80-315B	44.5	100	30	80	3000
80-315C	41	85	22	80	3000
80-350	50	150	55	80	3000
80-350A	44.5	142	45	80	3000
80-350B	41	135	37	80	3000
80-100(I)	100	12.5	5.5	80	3000
80-100(I)A	89	10	4	80	3000
80-125(I)	100	20	11	80	3000
80-125(I)A	89	16	7.5	80	3000
80-160(I)	100	32	15	80	3000
80-160(I)A	93.5	28	11	80	3000
80-160(I)B	86.6	24	11	80	3000
80-200(I)	100	50	22	80	3000
80-200(I)A	93.5	44	18.5	80	3000
80-200(I)B	87	38	15	80	3000
80-250(I)	100	80	37	80	3000
80-250(I)A	93.5	70	30	80	3000
80-250(I)B	87	60	30	80	3000
80-315(I)	100	125	75	80	3000
80-315(I)A	95	113	55	80	3000
80-315(I)B	90	101	45	80	3000
80-315(I)C	82	85	37	80	3000
100-100	100	12.5	5.5	100	3000
100-100A	89	10	4	100	3000
100-125	100	20	11	100	3000
100-125A	89	16	7.5	100	3000
100-160	100	32	15	100	3000
100-160A	93.5	28	11	100	3000
100-160B	86.6	24	11	100	3000
100-160B	83	24	7.5	100	3000
100-200	100	50	22	100	3000
100-200A	93.5	44	18.5	100	3000
100-200B	87	38	15	100	3000
100-250	100	80	37	100	3000
100-250A	93.5	70	30	100	3000
100-250B	87	60	30	100	3000
100-250B	83	63	22	100	3000
100-315	100	125	75	100	3000
100-315A	95	113	55	100	3000
100-315B	90	101	45	100	3000
100-315C	82	85	37	100	3000
100-350	100	150	90	100	3000
100-350A	88	142	75	100	3000
100-350B	80	135	55	100	3000
100-100(I)	160	12.5	11	100	3000
100-125(I)	160	20	15	100	3000
100-125(I)A	140	17	11	100	3000
100-160(I)	160	32	22	100	3000
100-160(I)A	140	28	18.5	100	3000
100-200(I)	160	50	37	100	3000
100-200(I)A	140	45	30	100	3000
100-200(I)B	100	40	22	100	3000
100-250(I)	160	80	55	100	3000
100-250(I)A	140	72	45	100	3000
100-250(I)B	100	65	37	100	3000
125-100	160	12.5	11	125	3000
125-100A	143	10	7.5	125	3000
125-125	160	20	15	125	3000
125-125A	143	16	11	125	3000
125-160	160	32	22	125	3000
125-160A	150	28	18.5	125	3000
125-160B	138	24	15	125	3000
125-200	160	50	37	125	3000
125-200A	150	44	30	125	3000
125-200B	138	37.5	22	125	3000
125-250	160	80	55	125	3000
125-250A	150	70	45	125	3000
125-250B	138	60	37	125	3000
125-315	160	125	90	125	3000
125-315A	150	110	75	125	3000
125-315B	143	100	75	125	3000
125-315C	134	88	55	125	3000
125-350	160	150	110	125	3000
125-350A	150	142	90	125	3000
125-350B	143	135	75	125	3000
150-125	160	20	11	150	3000
150-125A	150	16	7.5	150	3000
150-160	160	32	22	150	3000
150-160A	150	28	18.5	150	3000
150-160B	140	24	15	150	3000
150-200	160	50	37	150	3000
150-200A	150	44	30	150	3000
150-200B	138	37.5	22	150	3000
150-250	160	80	75	150	3000
150-250A	150	70	55	150	3000
150-250B	138	60	45	150	3000
150-315	200	125	110	150	3000
150-315A	187	110	90	150	3000
150-315B	173	95	75	150	3000
150-350	160	150	110	150	3000
150-350A	150	142	90	150	3000
150-350B	140	135	75	150	3000
150-250(I)	200	80	75	150	3000
150-250(I)A	187	70	55	150	3000
150-250(I)B	173	60	45	150	3000
150-315(I)	200	125	110	150	3000
150-315(I)A	187	110	90	150	3000
150-315(I)B	173	95	75	150	3000
200-270	400	80	132	200	3000
200-270A	352	70	110	200	3000
200-270B	320	56	75	200	3000
200-330	400	125	220	200	3000
200-330A	352	112	200	200	3000
200-330B	320	96	132	200	3000

Model list IRG/ISWR at 1500 rpm (238 models)

Model	Flow m³/h	Head m	Power kW	DN	Speed rpm
40-125(I)	6.3	5	0.55	40	1500
40-160(I)	6.3	8	0.55	40	1500
40-160(I)A	5.5	6	0.55	40	1500
40-200(I)	6.3	12.5	0.75	40	1500
40-200(I)A	5.8	11	0.55	40	1500
40-250(I)	6.3	20	1.5	40	1500
40-250(I)A	5.8	17	1.1	50	1500
50-160	6.3	8	0.75	50	1500
50-200	6.3	12.5	0.75	50	1500
50-200A	5.5	9.5	0.75	50	1500
50-250	6.3	20	1.5	50	1500
50-250A	5.8	17	1.1	50	1500
50-125(I)	12.5	5	0.55	50	1500
50-160(I)	12.5	8	0.55	50	1500
50-160(I)A	11	6	0.55	50	1500
50-200(I)	12.5	12.5	1.1	50	1500
50-200(I)A	11.2	10	0.75	50	1500
50-250(I)	12.5	20	2.2	50	1500
50-250(I)A	11.7	17.5	1.5	50	1500
50-250(I)B	10	13	1.1	50	1500
50-315(I)	12.5	32	4	50	1500
50-315(I)A	11.7	28	3	50	1500
50-315(I)B	10	21	3	50	1500
65-125	12.5	5	0.55	65	1500
65-160	12.5	8	0.75	65	1500
65-160A	11	6	0.55	65	1500
65-200	12.5	12.5	1.1	65	1500
65-200A	11.2	10	0.75	65	1500
65-250	12.5	20	2.2	65	1500
65-250A	11.7	17.5	1.5	65	1500
65-250B	10	13	1.1	65	1500
65-315	12.5	32	4	65	1500
65-315A	11.7	28	3	65	1500
65-315B	10	21	3	65	1500
65-125(I)	25	5	0.75	65	1500
65-160(I)	25	8	1.1	65	1500
65-160(I)A	22	6	0.75	65	1500
65-200(I)	25	12.5	2.2	65	1500
65-200(I)A	23.3	11	1.5	65	1500
65-250(I)	25	20	3	65	1500
65-250(I)A	22.2	15.8	3	65	1500
65-250(I)B	20	12.8	2.2	65	1500
65-315(I)	25	32	5.5	65	1500
65-315(I)A	22.5	26	4	65	1500
65-315(I)B	20	21	4	65	1500
80-125	25	5	0.75	80	1500
80-125A	21.8	3.8	0.55	80	1500
80-160	25	8	1.5	80	1500
80-160A	22	6	1.1	80	1500
80-200	25	12.5	2.2	80	1500
80-200A	23.3	10	1.5	80	1500
80-250	25	20	3	80	1500
80-250A	22.2	15.8	3	80	1500
80-250B	20	12.8	2.2	80	1500
80-315	25	32	5.5	80	1500
80-315A	23	27.9	4	80	1500
80-315B	22.3	25	4	80	1500
80-125(I)	50	5	1.5	80	1500
80-160(I)	50	8	2.2	80	1500
80-160(I)A	44.7	6	1.5	80	1500
80-160(I)B	43.2	5.8	1.5	80	1500
80-200(I)	50	12.5	3	80	1500
80-200(I)A	46.8	11	3	80	1500
80-250(I)	50	20	5.5	80	1500
80-250(I)A	46	17	4	80	1500
80-250(I)B	40.5	13	3	80	1500
80-315(I)	50	32	11	80	1500
80-315(I)A	46	27.9	7.5	80	1500
80-315(I)B	40.5	21	5.5	80	1500
100-125	50	5	1.5	100	1500
100-160	50	8	2.2	100	1500
100-160A	46	6	1.5	100	1500
100-200	50	12.5	3	100	1500
100-200A	44.7	10	2.2	100	1500
100-250	50	20	5.5	100	1500
100-250A	46	17	4	100	1500
100-250B	40.5	13	3	100	1500
100-315	50	32	11	100	1500
100-315A	46.7	27.9	7.5	100	1500
100-315B	40.5	21	5.5	100	1500
100-125(I)	80	5	2.2	100	1500
100-160(I)	80	8	4	100	1500
100-160(I)A	72	6	3	100	1500
100-200(I)	80	12.5	5.5	100	1500
100-200(I)A	72	10	4	100	1500
100-250(I)	100	20	11	100	1500
100-250(I)A	93.3	17.4	7.5	100	1500
100-250(I)B	69	15	5.5	100	1500
100-315(I)	80	32	15	100	1500
100-315(I)A	75	27.5	11	100	1500
100-315(I)B	72	24	7.5	100	1500
100-400(I)	80	44	30	100	1500
100-400(I)A	75	44	22	100	1500
100-400(I)B	70	38	18.5	100	1500
125-125	100	5	2.2	125	1500
125-160	80	8	3	125	1500
125-160A	69.3	6	2.2	125	1500
125-200	80	12.5	5.5	125	1500
125-200A	75	11	4	125	1500
125-250	100	20	11	125	1500
125-250A	93.3	17.4	7.5	125	1500
125-250B	87	15	5.5	125	1500
125-315	100	32	15	125	1500
125-315A	95	27	11	125	1500
125-315B	87	24	11	125	1500
125-400	100	50	30	125	1500
125-400A	94	44	22	125	1500
125-400B	87	37.5	18.5	125	1500
125-200(I)	200	12.5	11	125	1500
125-200(I)A	179	10	7.5	125	1500
125-250(I)	200	20	15	125	1500
125-250(I)A	184.4	17	11	125	1500
125-250(I)B	167	14	7.5	125	1500
125-315(I)	200	32	22	125	1500
125-315(I)A	187	28	18.5	125	1500
125-315(I)B	173	24	15	125	1500
125-400(I)	200	50	45	125	1500
125-400(I)A	187	44	37	125	1500
125-400(I)B	160	38	30	125	1500
125-500(I)	200	80	75	125	1500
125-500(I)A	187	70.5	55	125	1500
125-500(I)B	160	62	45	125	1500
150-200	200	12.5	15	150	1500
150-200A	179	10	11	150	1500
150-250	200	20	18.5	150	1500
150-250A	184.4	17	15	150	1500
150-250B	167	14	11	150	1500
150-315	200	32	30	150	1500
150-315A	187	28	22	150	1500
150-315B	173	24	18.5	150	1500
150-400	200	50	45	150	1500
150-400A	187	44	37	150	1500
150-400B	174	38	30	150	1500
150-400C	160	32	22	150	1500
150-200(I)	200	12.5	15	150	1500
150-200(I)A	179	10	11	150	1500
150-250(I)	200	20	18.5	150	1500
150-250(I)A	187	17.5	15	150	1500
150-250(I)B	173	14	11	150	1500
150-315(I)	200	32	30	150	1500
150-315(I)A	187	28	22	150	1500
150-315(I)B	173	24	18.5	150	1500
150-400(I)	200	50	15	150	1500
150-400(I)A	187	44	37	150	1500
150-400(I)B	173	37.5	30	150	1500
150-400(I)C	160	32	22	150	1500
150-500(I)	200	80	90	150	1500
150-500(I)A	182	70.5	75	150	1500
150-500(I)B	166	62	55	150	1500
200-200	200	12.5	15	200	1500
200-200A	179	10	11	200	1500
200-250	200	20	18.5	200	1500
200-250A	184.4	17	15	200	1500
200-250B	179	14	11	200	1500
200-315	200	32	30	200	1500
200-315A	187	28	22	200	1500
200-315B	173	24	18.5	200	1500
200-400	200	50	45	200	1500
200-400A	187	44	37	200	1500
200-400B	174	38	30	200	1500
200-400C	160	32	22	200	1500
200-500	320	80	110	200	1500
200-500A	300	70	90	200	1500
200-500B	277	60	75	200	1500
200-500C	253	50	55	200	1500
200-200(I)	400	12.5	22	200	1500
200-200(I)A	358	10	18.5	200	1500
200-250(I)	400	20	30	200	1500
200-250(I)A	358	16	22	200	1500
200-250(I)B	322	13	18.5	200	1500
200-315(I)	400	32	55	200	1500
200-315(I)A	374	28	45	200	1500
200-315(I)B	346	24	37	200	1500
200-400(I)	400	50	75	200	1500
200-400(I)A	374	44	75	200	1500
200-400(I)B	346	38	55	200	1500
200-400(I)C	320	32	45	200	1500
200-500(I)	400	80	132	200	1500
200-500(I)A	374	70	110	200	1500
200-500(I)B	346	60	90	200	1500
200-500(I)C	320	50	75	200	1500
250-235	500	12.5	22	250	1500
250-250	550	20	45	250	1500
250-250A	500	17	37	250	1500
250-300	500	20	37	250	1500
250-315	550	32	75	250	1500
250-315A	500	28	55	250	1500
250-315B	450	24	45	250	1500
250-400	500	50	110	250	1500
250-400A	500	44	90	250	1500
250-400B	450	38	75	250	1500
250-480	550	70	160	250	1500
250-480A	500	60	132	250	1500
250-480B	450	50	90	250	1500
250-500	550	80	200	250	1500
250-500A	506	71	160	250	1500
250-500B	466	63.5	132	250	1500
300-235	720	18	55	300	1500
300-235A	600	15	45	300	1500
300-235B	540	12.8	37	300	1500
300-250	720	20	55	300	1500
300-250A	600	17	45	300	1500
300-300	720	28	75	300	1500
300-300A	666	24	75	300	1500
300-300B	623	21	55	300	1500
300-315	720	32	90	300	1500
300-315A	650	28	75	300	1500
300-315B	580	24	55	300	1500
300-380	720	44	132	300	1500
300-380A	666	38	110	300	1500
300-380B	614	33	90	300	1500
300-400	720	50	110	300	1500
300-400A	637	44	110	300	1500
300-400B	563	38	90	300	1500
300-400C	561	33	75	300	1500
300-460	720	65	185	300	1500
300-460A	666	55	160	300	1500
300-500	720	80	250	300	1500
300-500A	675	70	200	300	1500
300-500B	625	60	160	300	1500
300-235(I)	1080	40	160	300	1500
300-235(I)A	965	32	132	300	1500
350-250	800	20	75	350	1500
350-300	800	20	75	350	1500
350-315	800	32	90	350	1500
350-315A	1080	17	75	350	1500
350-400	800	50	160	350	1500
350-400A	1080	28	132	350	1500
350-460	1210	50	250	350	1500
350-460A	1080	44	200	350	1500
350-480	850	65	220	350	1500
350-480A	800	60	200	350	1500
350-315(I)	1200	32	160	350	1500
350-315(I)A	1092	28	132	350	1500
350-315(I)B	994	25	110	350	1500
350-400(I)	1200	50	250	350	1500
350-400(I)A	1092	44	250	350	1500
350-400(I)B	994	38.5	200	350	1500

We check which material version (304 or 316, seal, cable) suits your medium using a corrosion-resistance table covering 170 media. We will gladly advise you on special media.

Request the right pump

Tell us your medium, flow rate and head – we will recommend the right series and model.

Request a pump by email

Subject to technical changes. All information without guarantee.

Stainless steel submersible pumps and stainless steel pumps

Which series is right for you?

Stainless steel submersible pumps

WQ(D)-S – Stainless Steel Submersible Sewage Pump

Performance range

Features

Applications

GAK – Auto-Coupling Device

WQ(D)-SQG – Sewage Pump with Cutter

Performance range

Features

Applications

Q(D)X-S – Stainless Steel Compact Submersible Pump

Performance range

Features

Applications

Dry-installed stainless steel pumps

ZW(D)-S – Self-Priming Sewage Pump

Performance range

Features

Applications

IRG/ISWR – Stainless Steel Inline Centrifugal Pump

Performance range

Features

Applications

Request the right pump
